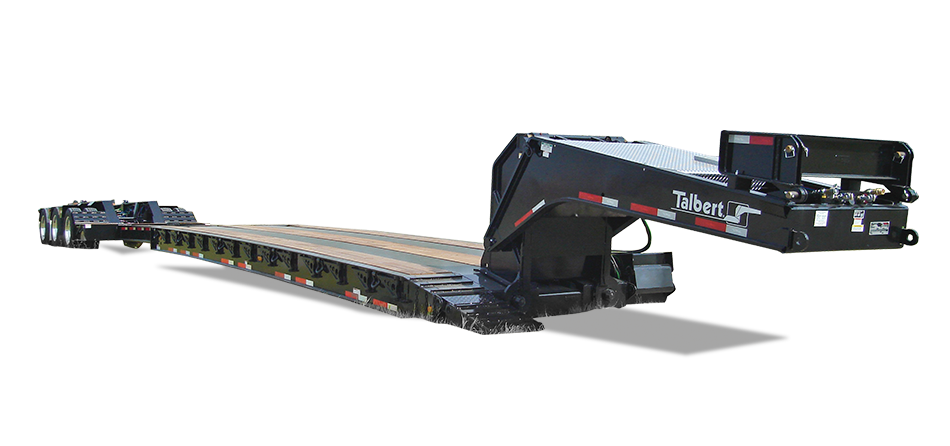

Double Drop Trailers

30-55 Extendable

Talbert extendable trailers enhance the versatility of the Double Drop Series by increasing the deck length to offer increased hauling capability.

60,000 - 110,000 lb. Capacity

22 in. Loaded Deck Height / 8 in. Loaded Road Clearance

48 ft.-0 in. Overall Closed Deck Length (As A Tandem)

8 ft.-6 in. Wide Deck And Rear Bridge

55CC lowbed series trailers

Specifications

30-55 Extendable Double Drop
  • Mechanical Removable Gooseneck
  • Suspension: Air Ride
  • 80 in. Swing Radius (96 in. Optional)
  • Tires: 255/70R22.5 (H)
  • Fixed Pin And Sliding Collar
  • Wheels: Steel Disc Hub Piloted, Outboard Mounting
  • Front Folding Ramps (Optional)
  • Optional 3rd Axle Available
  • 48 ft.-0 in. Overall Closed (As A Tandem)
  • Platforms On Gooseneck And Rear Bridge
  • 12 in. Swing/Removable Outriggers
  • Front Bridge Ramp
  • 8 ft.-6 in. Wide Deck And Rear Bridge
  • Cambered Telescopic Beams
  • 22 in. Loaded Deck Height
  • Spring Parking Brake On One Axle
  • 8 in. Loaded Road Clearance
  • Anti – Lock Brake System
  • High Strength 100,000 lb. Minimum Yield Steel
  • Talbert Red Or Black Paint
  • Axles: 25,000 lb. Capacity

Built to Haul, Engineered to Last.
