Heavy Haul Trailers

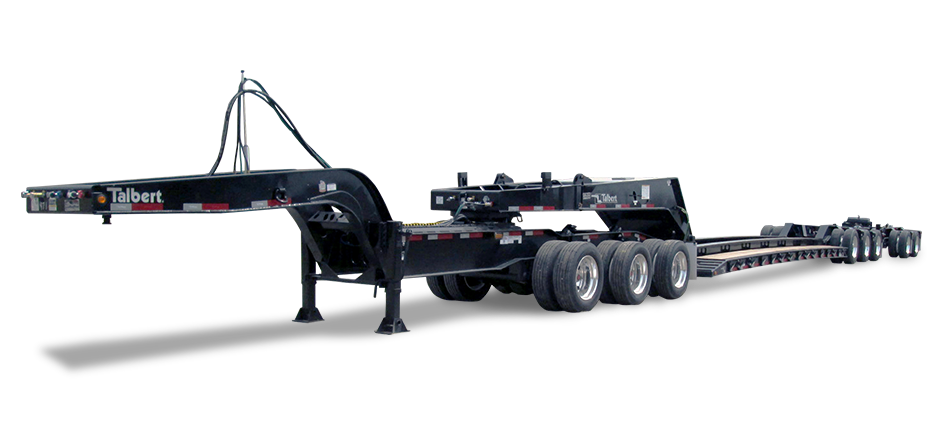

65SA Modular

Specially crafted to meet your needs, available in drop deck with raised center, beam deck, or flat deck configurations.



130,000 lb. Capacity in 14 ft. (5) Axle



140,000 lb. Capacity In 15 ft. (4) Axle Close Couple



24 in. Loaded Deck Height / 6 in. Loaded Road Clearance



28 ft. 0 in. Deck Length



8 ft. 6 in. Wide Deck

55CC lowbed series trailers

Specifications

65SA Modular

Non-Ground Bearing Gooseneck Design	Tires: 275/70R22.5 (H)
120 in. Swing Radius with Connections for up to 70 in. Gooseneck Extension	Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
Hydraulic Support Cylinder (Standard)	Bolsters and Half Bolster on Rear Bridge
Front Folding / Fixed Ramps (Optional)	41 in. Mainbeam / 37 in. Bolster Height
28 ft. 0 in. Deck Length	Boom Well in Rear Bridge
12 in. Swinging / Removable Outriggers	Spring Parking Brake on Axle Two
8 ft. 6 in. Wide Deck	Up to 5 Axles Close Couple and 3+2 E2NitroTM Spread Capable
24 in. Loaded Deck Height / 6 in. Loaded Road Clearance	Removable Axles (RA / Modular)
1/4 in. Plate Bucket Well, Last 6 ft. of Deck	Reinforced for Various Decks / Inserts
High Strength 100,000 psi Minimum Yield Steel	12 Volt LED Sealed Light System
2 in. Apitong Flooring	130,000 lb. Capacity in 14 ft (5) Axle
Two Sections Chain Storage	Close Coupled or 3+2 Spread Axle
Axles: 25,000 lb. Capacity	140,000 lb. Capacity In 15 ft. (4) Axle Close Couple
RIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control	Estimated 3-Axle Base Trailer Weight: 31,750 lbs.
Manual Raising / Lowering Valve	Valspar R-Cure 800 Red or Black Paint
