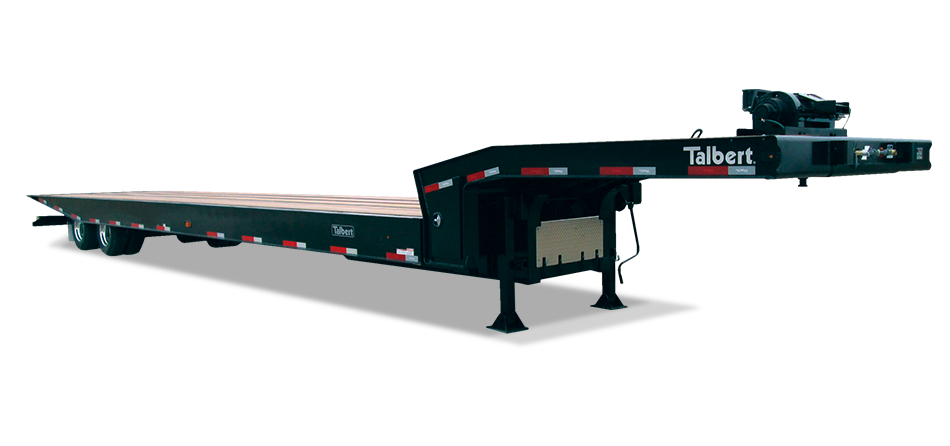

Traveling Axle Trailers

4053TA

Transporting low clearance and dead loads isn’t easy — but the right traveling axle trailer makes it look effortless.



80,000 lb. Capacity Distributed, 50,000 lbs. In 10 ft. 0 in.



53 ft. 0 in. Deck Length



8 ft. 6 in. Wide Deck

AC3-25 Tag-a-long trailer

Specifications

4053TA

Four Beam, T-1 & 80k Construction	4 in. I-Beam Crossmembers on 9 in. Centers
80,000 lbs. Distributed 50,000 lbs. in 10 ft.	1 1/2 in. Apitong Flooring
Overall Length: 53 ft. 0 in.	Keyhole Chain Slots in Side Beams and Deck Centerline; both on 36 in. Centers
Lower Deck Length: 41 ft. 6 in.	Eight Keyhole Chain Slots Across Rear Approach Plate
Upper Deck Length: 11 ft. 8 in.	12 1/4 in. x 7 1/2 in., 2S/1M ABS System
96-in. Swing Radius	Hub Piloted Steel Disc Wheels
Planetary Winch with Air-Tensioner, Cable and Shackle	Tires: 235/75R17.5 (H) 16 PR
Wireless Winch Remote	RIDEWELL Air Ride Suspension
Wet-Line Operation	7-Way Plug With LED Lights
Large Capacity, Lockable Tool Box on Curb Side with Chain Rack, Updated Hardware and Door Seal	Valspar R-Cure 800® Top Coat
Two-Speed Landing Gear	Two Pair of Pipe Pockets Inside Side Beam Flange
Cable Roller at Front, Center of Lower Deck	Axle Stops on Last Axle to Prevent Crushing when Loading
8 ft. – 6 in. Width	19,480 lbs.
Updated, Larger Diameter Piggy-Back Cylinder
